With increased resistance to moisture

With increased resistance to moisture

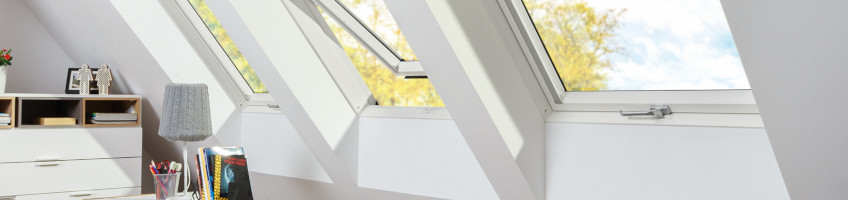

  • With increased resistance to moistureA popular design of the windows with a hinge located in the middle of the window height, designed for rooms with higher humidity.
  • Convenient way of using the window as the handle is located at the bottom of the sash. The handle is equipped with a two step micro-opening facilty.
  • Easy cleaning of the outer pane and operating an awning blind with the use of blocking sash bolt when rotated through 180 degrees.
  • Available as standard with energy-saving glazing U3.
  • Increased resistance to burglary - TopSafe system.
  • A wide range of accessories.
  • Possibility to install electrical control.
  • Installation in roof pitches from 15 to 90 degrees.

High moisture resistance - FAKRO thermoPro technology as standard

System topSafeTopsafe® system of burglary protection as standard





  • FTU-V


    • Air inlet V40Pautomatic air V40P
    • Glazing unit U3available as standard with energy-saving glazing U3
    • Highest quality pine woodhighest quality pine wood, glued in layers, vacuum impregnated
    • Wood painted three times with ecological acrylic lacquerthree coats of polyurethane varnish ideal for creating a durable and smooth finish in white on the surface of the frame
    • Designed for kitchens and bathroomsDesigned for rooms with periodically increased humidity (kitchens, bathrooms)
    • Suitable for pitches from 15-90Installation in roof pitches from 15 to 90 degrees
    • 1.3 W/m²K window U-value 1.0 W/m²K glazing U-value 32 dB acoustic insulation Rw 4H-16-4T glazing unit argon inert gas filled panes + external glass toughened V40P air inlet type up to 49m³/h air inlet air flow triple varnishing four seals + multi-point opening Elegant handle
    • 0.97 W/m²K window U-value 0.5 W/m²K glazing U-value 33 dB acoustic insulation Rw 4HT-10-4H-10-4HT glazing unit krypton inert gas filled panes + external glass toughened V40P air inlet type up to 49m³/h air inlet air flow triple varnishing four seals + multi-point opening Elegant handle
    • 1.3 W/m²K window U-value 1.1 W/m²K glazing U-value 35dB acoustic insulation Rw 4HS-14-33.1T glazing unit argon inert gas filled panes + external glass toughened V40P air inlet type up to 49m³/h air inlet air flow triple varnishing four seals + multi-point opening Elegant handle
  • PTP-V


    • Air inlet V35efficient air inlet V35
    • Glazing unit U3available as standard with energy-saving glazing U3
    • Glazing unit U5available as standard with energy-saving glazing U5
    • Multi chamber white PVC profilemulti-chamber white PVC profile with reinforced steel core
    • Multi chamber oak or pine PVC profileavailable in white, golden oak (PTP-V/GO) or pine (PTP-V/PI) veneer
    • Window is durable and resistant to corrosionthe material does not absorb moisture, the window is durable and resistant to corrosion
    • Designed for kitchens and bathroomsDesigned for rooms where elevated humidity level stays for long time (bathrooms, laundry rooms)
    • Suitable for pitches from 15-90Installation in roof pitches from 15 to 90 degrees
    • 1.3 W/m²K window U-value 1.0 W/m²K glazing U-value 33 dB acoustic insulation Rw 4H-16-4T glazing unit argon inert gas filled panes + external glass toughened - air inlet type - air inlet air flow - varnishing four seals + multi-point opening Elegant white handle
    • 1.3 W/m²K window U-value 1.0 W/m²K glazing U-value 31 dB acoustic insulation Rw 4H-16-4T glazing unit argon inert gas filled panes + external glass toughened V35 air inlet type up to 41m³/h air inlet air flow four seals + multi-point opening Elegant white handle
    • 0.95 W/m2K window U-value 0.5 W/m²K glazing U-value 34 dB acoustic insulation Rw 4HT-8-4H-10-4HT glazing unit krypton inert gas filled panes + external glass toughened V35 air inlet type up to 41m³/h air inlet air flow - varnishing four seals + multi-point opening Elegant white handle
