Balcony window

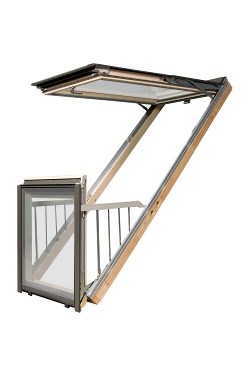

  • Balcony windowInnovative, large roof window in which the open sashes create a balcony. The upper sash is opened upwards, the lower forward allowing easy access to the balcony bay. The sash when opened in position form 0 °to 45 ° is supported by innovative supporting mechanism enabling to leave the sash open in any position within this range.
  • The window is operated by the handle located at the bottom of the upper sash. Handle has a two-point locking mechanism.
  • The sash when rotated through 180 degrees is locked by the bolt for cleaning.
  • Automatic air inlet V40P.
  • Both the upper and lower sashes are equipped with safety glazing unit P2.
  • The highest quality pine wood, glued in layers, vacuum impregnated.
  • Double coated wood with ecological acrylic lacquer in natural colour.
  • Increased resistance to burglary - TopSafe system.
  • A wide range of accessories.
  • Installation range from 35 to 55 degrees.
Topsafe® system of burglary protection as standardTopsafe® system of burglary protection as standard

  • FGH-V Galeria


    • Air inlet V40PAutomatic air inlet V40P
    • Glazing unit P2Safety glazing unit P2
    • Flashing EHV-AT ThermoWide range of accessories
    • Suitable for pitches from 35-55 Installation range: 35 – 55°
    FGH-V P2 Galeria
    • 1.5 W/m²K window U-value 1.0 W/m²K glazing U-value 35 dB acoustic insulation Rw 4HS-14-33.2T glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated, anti-burglary glass class P2A V40P air inlet type four seals Elegant handle
